Visual Query Editor

Good SQL queries can be much easier with a visual editor. You may download the FlySpeed Query software (free version (supports only a single database) or purchase a version which supports multiple databases) from:

http://www.activedbsoft.com/overview-querytool.html
With this tool you may connect to the database of a Set of Books. To do this, select the Firebird or Interbase driver and then select the books.fdb database file.

Once you connect to the database, all tables for the selected Set of Books will be listed  – i.e. Queries, Tables, System Tables and Views.

Access Error: – “The process cannot access the file because it is being used by another process.” This usually means that you are accessing or connecting a Set of Books that is already opened.

To resolve this – close the Set of Books in TurboCASH.

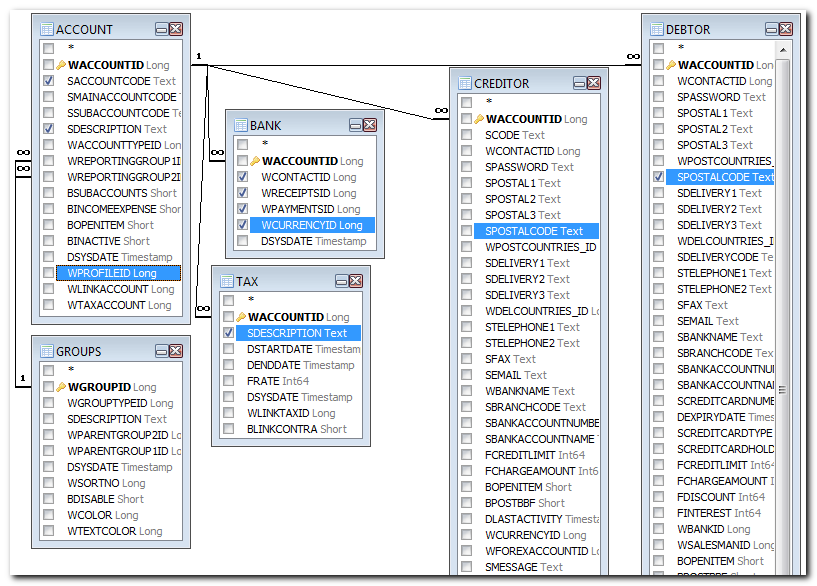

Data structure - Accounts

The definitions of a ledger, debtor of creditor accounts are contained in the Account table. The links to other tables are outlined briefly as follows:

Table

Key

Keys to other tables

Remarks

ACCOUNT

WACCOUNTID

WREPORTINGGROUP1ID = GROUPS.WGROUPID
WREPORTINGGROUP2ID = GROUPS.WGROUPID

All accounts (i.e. Debtors=1, Creditors=2, Tax=4, Bank=3 and Ledger=0)

DEBTOR

WACCOUNTID

WACCOUNTID = ACCOUNT.WACCOUNTID

The information and settings of debtors.

CREDITOR

WACCOUNTID

WACCOUNTID = ACCOUNT.WACCOUNTID

The information and settings of creditors.

TAX

WACCOUNTID

WACCOUNTID = ACCOUNT.WACCOUNTID

Tax percentage and info of linked Tax accounts (VAT/GST/Sales Tax).

BANK

WACCOUNTID

WACCOUNTID = ACCOUNT.WACCOUNTID
WRECEIPTSID = BATTYPES.WBATCHTYPEID
WPAYMENTSID = BATTYPES.WBATCHTYPEID

The Payments and Receipt batch id linked to the Bank accounts.

Should you set the bank reconciliation method to activate the Dutch Bank method, then the BANK.WRECEIPTSID is the same as the BANK. WPAYMENTSID.

GROUPS

WGROUPID



Groups  are used to link accounts  and to structure the reports. Accounts must be lined to Account Group1 and / or Account group2. These Account groups are then linked to Financial categories.  This will enable you to create and print reports using groups.

See - Reportman - References - Groups for a list of all Reporting groups in the V_TYPES table.

BATTYPES

WBATCHTYPEID


This table contains the values for the settings of each batch.


reportman-references-data-accounts

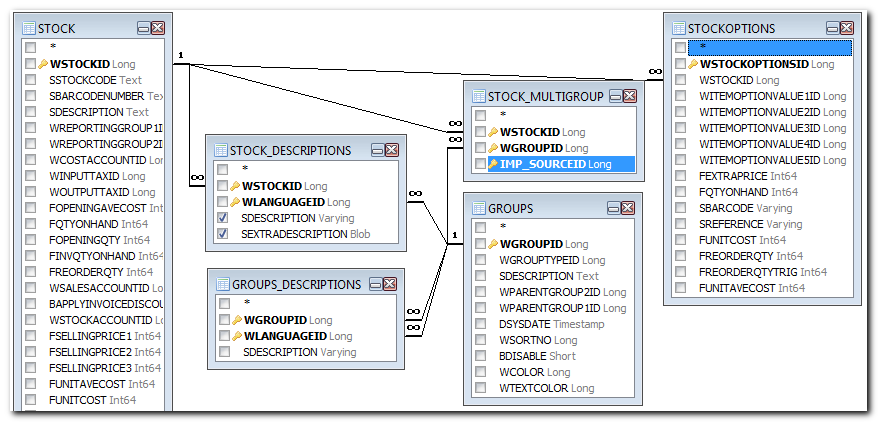

Data structure - Stock (Inventory)

The Stock data contains links to the Account table. This links the Sales, Cost of Sales, Stock Control, Input Tax, Output Tax, default Supplier1 and default Supplier2 AccountID to the stock items.

Table

Key

Keys to other tables

Remarks

STOCK

WSTOCKID

WREPORTINGGROUP1ID = GROUPS.WGROUPID
WREPORTINGGROUP2ID = GROUPS.WGROUPID

WUNITID = UNIIT.WUNITID
WCOSTACCOUNTID  = ACCOUNT.WACCOUNTID
WSALESACCOUNTID  = ACCOUNT.WACCOUNTID
WSTOCKACCOUNTID = ACCOUNT.WACCOUNTID
WINPUTTAXID  =  ACCOUNT.WACCOUNTID
WSUPPLIER1ID = ACCOUNT.WACCOUNTID
WSUPPLIER2ID = ACCOUNT.WACCOUNTID

The Stock table are used to select the stock items (products or services) when creating or editing  documents.

STOCK_DESCRIPTIONS

WSTOCKID,
WLANGUAGEID

WSTOCKID =STOCK.WSTOCKID
WLANGUAGEID = GROUPS.WGROUPID

Different languages for one stock item (product).


reportman-references-stock

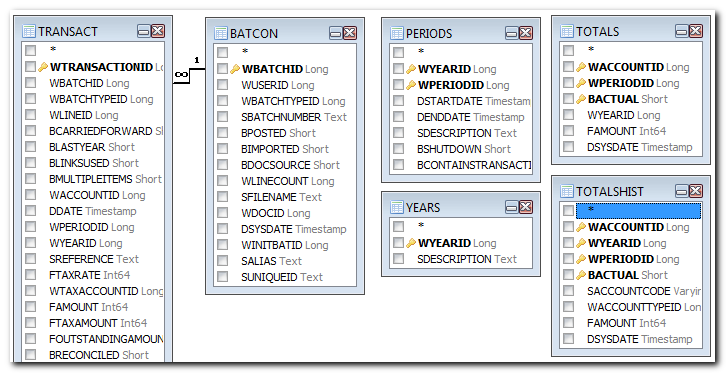

Data structure - Financial

All transactions are recorded on accounts. These updated data are contained in 2 tables (i.e. 1 for all details and 1 for all totals).

The budget figures for ledger accounts are also contained in the Totals table.

Table

Key

Keys to other tables

Remarks

TOTALS

WACCOUNTID,

WPERIODID,

BACTUAL

WACCOUNTID = ACCOUNT.WACCOUNTID
WPERIODID = PERIODS.WPERIODID

All totals of accounts per period. Also contains Budget figures (BACTUAL = 0)

PERIODS

WYEARID,

WPERIODID

WYEARID = YEARS.WYEARID

Information for the periods.

Year 1 period -1 = Opening Balances previous year.
Year 1 period 1 until and including 13 = Period balances previous year.
Year 2 period 0 = Opening balances this year (current year).
Year 2 period 14 until and including 26 - Period balances this year (current year)

TRANSACT

WTRANSACTIONID

WBATCHID = BATCON.WBATCHID
WBATCHTYPEID = BATTYPES.WBATCHTYPEID
WACCOUNTID = ACCOUNT.WACCOUNTID
WPERIODID =PERIODS.WPERIODID
WYEARID  =  YEARS.WYEARID
WTAXACCOUNTID = ACCOUNT.WACCOUNTID
WDESCRIPTIONID = MESSAGES.WMESSAGEID
WREPORTINGGROUP1ID = GROUPS.WGROUPID
WREPORTINGGROUP2ID = GROUPS.WGROUPID
WDOCID =DOCHEAD.WDOCID

Transactions at detail level. In this table, all individual transactions booking is listed.

It will display the debit as well as the credit bookings.

YEARS

WYEARID


Different years in TurboCASH

BATCON

WBATCHID

WBATCHTYPEID =  BATTYPES.WBATCHTYPEID

For each processing of a transactions (in  a journal or a document) an unique number (processing number) is generated. This  number is used in the Transaction table to record and group the balances of the processed transactions.


reportman-references-financial


Data structure - Text

The text in the transaction and in the documents tables (dochead en docline) are contained in one table.

This allows you to reuse the text in the text fields. This reduces the number of similar text to be repeated in the database. It also reduces the size of the database.

The disadvantage of this is that you first need to identify the message id (number) before you can see the actual description or message. For example, if you view the Transact table, you will notice a number in the WDESCRIPTIONID column which refers to the Messages table. In the Message table, you will find the text displayed in the fields of the interface screens or fields on the reports.

The same linking is used in the DOCHEAD and DOCLINE tables.

Table

Key

Keys to other tables

Remarks

MESSAGES

WMESSAGEID


Text of transaction descriptions in the dochead and docline tables.

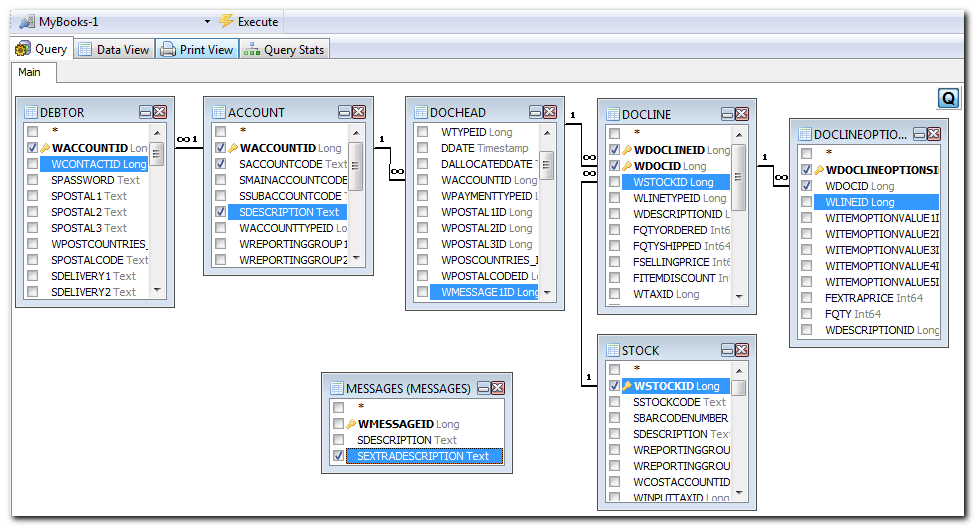

Data structure - Documents

The data structure of documents (invoices, credit notes, quotes, purchases, supplier returns and orders) are located in the DOCHEAD table. The DOCLINE table contains the transaction or comment detail in lines of stock items as selected or as comments added to documents. The details of the Stock Items are located in the STOCK table.

Table

Key

Keys to other tables

Remarks

DOCHEAD

WDOCID

WTYPEID = TYPES.WTYPEID
WACCOUNTID = ACCOUNT.WACCOUNTID
WPOSTAL1ID = MESSAGES.WMESSAGEID
WPOSTAL2ID  = MESSAGES.WMESSAGEID
WPOSTAL3ID = MESSAGES.WMESSAGEID
WPOSCOUNTRIES_ID = COUNTRIES.COUNTRIES_ID
WPOSTALCODEID  = MESSAGES.WMESSAGEID
WMESSAGE1ID = MESSAGES.WMESSAGEID
WMESSAGE2ID = MESSAGES.WMESSAGEID
WMESSAGE3ID = MESSAGES.WMESSAGEID
WSALESMANID  = GROUPS.WGROUPID
WDELADDRESS1ID = MESSAGES.WMESSAGEID
WDELADDRESS2ID = MESSAGES.WMESSAGEID
WDELADDRESS3ID = MESSAGES.WMESSAGEID
WDELCOUNTRIES_ID = COUNTRIES.COUNTRIES_ID
WDELCODEID  = MESSAGES.WMESSAGEID
WREPORTINGGROUP1ID = GROUPS.WGROUPID
WREPORTINGGROUP2ID = GROUPS.WGROUPID
WUSERID = USERS.WUSERID

The dochead table contains the information of the document header fields / lines. Most of this text is located in the messages table. The values of the WTYPEID are as follows:

10 = Invoice
11 = Credit note
12 = Purchase
13 = Supplier return
14 = Quote
15 = Order
16 = Manual - Adjustments (via Stock)


DOCLINE

WDOCID,

WDOCLINEID

WDOCID = DOCHEAD.WDOCID
WSTOCKID =STOCK.WSTOCKID
WLINETYPEID  = TYPES.WTYPEID
WDESCRIPTIONID  = MESSAGES.WMESSAGEID
WTAXID = ACCOUNT.WACCOUNTID
WACCOUNTID = ACCOUNT.WACCOUNTID

The docline table contains the transaction details (document lines / rows). These may include comment lines.

Wlinetypeid may include the following values:

90 = Stock item - Excl.

91 = Comments

93 = Payment

94 = Stock item - Incl.

If the Waccountid contains values, these accounts were selected using the Accounts lookup for the Financial entry (Stock item type). Updating the ledger for this stock item type will not the standard contra account of the document.

DOCLINEOPTIONS

WDOCLINEOPTIONSID

WDOCID = DOCLINE.WDOCID
WLINEID = DOCLINE.WDOCLINEID
WITEMOPTIONVALUE1ID = ITEMOPTIONSVALUES.WITEMOPTIONVALUEID
WITEMOPTIONVALUE2ID = ITEMOPTIONSVALUES.WITEMOPTIONVALUEID
WITEMOPTIONVALUE3ID = ITEMOPTIONSVALUES.WITEMOPTIONVALUEID

WITEMOPTIONVALUE4ID = ITEMOPTIONSVALUES.WITEMOPTIONVALUEID

WITEMOPTIONVALUE5ID = ITEMOPTIONSVALUES.WITEMOPTIONVALUEID

WDESCRIPTIONID = MESSAGES.WMESSAGEID

The details of Options (Stock item type) is located in this table.

STOCK

WSTOCKID

STOCK.WREPORTINGGROUP1ID  = GROUPS.WGROUPID

STOCK.WREPORTINGGROUP2ID  = GROUPS.WGROUPID

WCOSTACCOUNTID  = ACCOUNT.WACCOUNTID

WSALESACCOUNTID  = ACCOUNT.WACCOUNTID

WSTOCKACCOUNTID = ACCOUNT.WACCOUNTID

WINPUTTAXID  =  ACCOUNT.WACCOUNTID

WSUPPLIER1ID = ACCOUNT.WACCOUNTID

WSUPPLIER2ID = ACCOUNT.WACCOUNTID

Stock group 1

Stock group 2

Cost of sales account

Sales account

Stock control account

Default Tax account

Default Supplier account 1

Default Supplier account 2
